Problems with a GAF Timberline Roof Installation

Gaf Timberline HDZ Pewter Color – Front View of Roof

  1. 1
    Cupping Shingles

    Cupping shingles at the edge of the roof.  Also, the starter is not lapped correctly, with a 6-inch overlap.  Cupping is a problem because it can cause leaks.  The starter is miss install but not that difficult to repair.

    Go To Pin
  2. 2
    Improper Nailing

    Image 1 shows the shingle stagger appears correct or close enough.  There is an exposed nail where the circle is.

    Image number 2 is extraordinary; not that sure why this piece of shingle is nailed like this.  These 2 images are in the same area of the roof.

    Go To Pin
  3. 3
    No Cobra Vent Installed

    No ridge vent was installed on this job.  GAF cobra vent would have been the appropriate material to use.  Instead, the crew maintained old power vents.  These certainly wouldn’t ventilate the entire home.

    Go To Pin
  4. 4
    Video Walk Through

    An Introduction To Lead Symphony

    Go To Pin

Rear slope of this new roof

  1. 1
    Valley Nail Spacing Incorrect

    Some valley nails are inside the 6 inches, this could be an indicator of water leaks.

    Click the link below to see the Advisory.

    GAF Steep Slope Technical Advisory

    Go To Pin
  2. 2

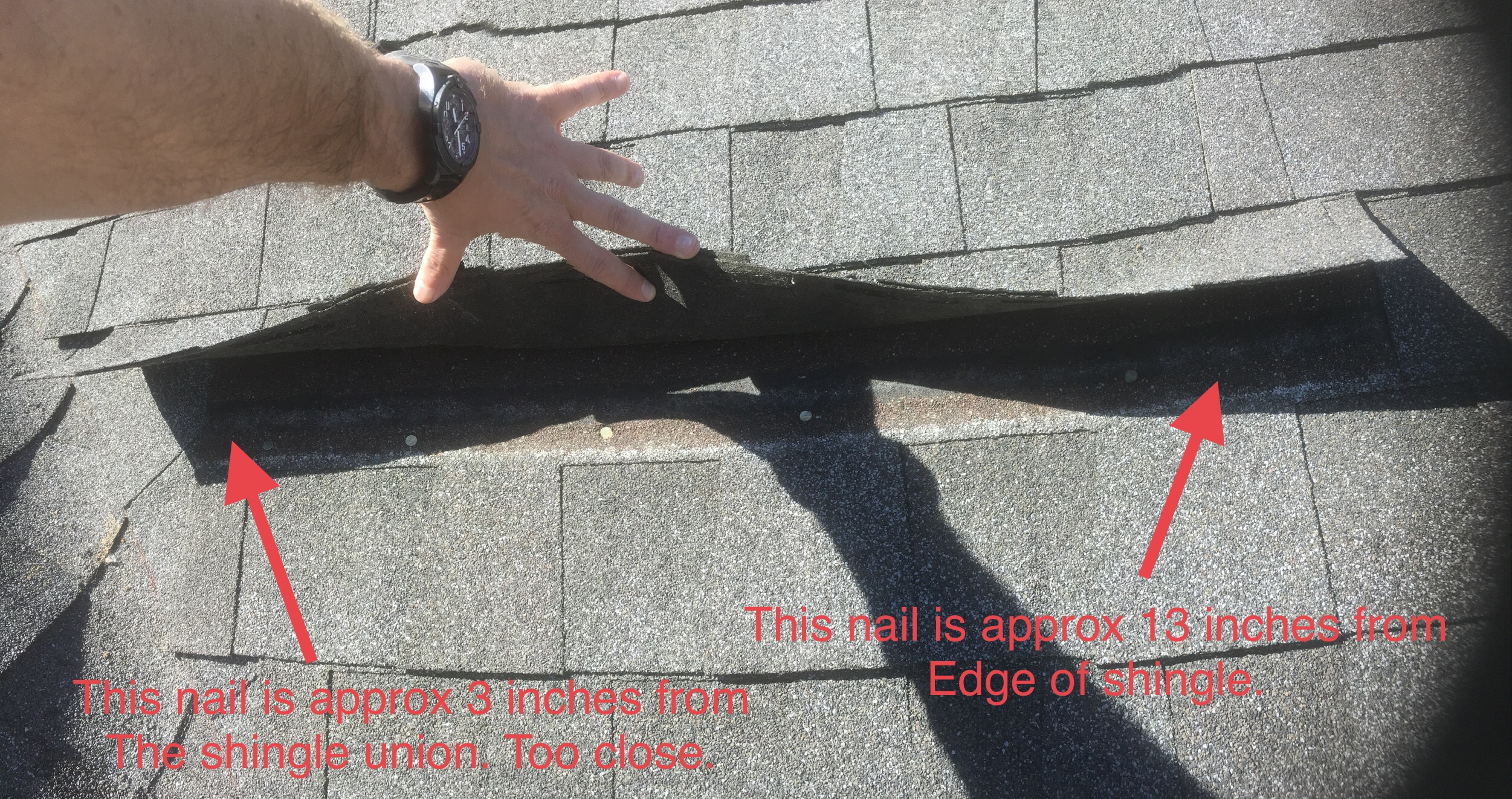

    Improper Nail Pattern On Entire Roof

    Shingle nail patterns are terrible.  They are too close to the union.



    This is a major problem and will cause leaks in the roof.  The nail pattern is not properly spaced over the entire roof.

    Technical PDF From GAF On Improper Driven Nails



    Proper nail patterns from GAD Pro Field Guide:



    Go To Pin

Chimney Flashing is a problem and will Leak

  1. 1
    The chimney is not flashed

    The left side of the chimney is not step flashed at all.

    The chimney is not flashed The chimney is not flashed The chimney is not flashed



    Go To Pin
  2. 2
    Chimney

    Notice on the right side of the chimney it has step flashing, but the metal appears old, and the step flashing looks to be nailed in the wrong way.Chimney Chimney Chimney
